In industries such as food processing, logistics, warehousing, and manufacturing, maintaining pallet hygiene is essential for safety, compliance, and operational efficiency. Choosing the right pallet washing machine can significantly impact your cleaning performance and costs.
Among the most common options are vertical pallet washing machines and horizontal pallet washing machines. But which one is the better fit for your business? Let’s break it down.
What Is a Vertical Pallet Washing Machine?
A vertical pallet washing machine is designed to clean pallets in an upright position. Pallets are loaded vertically and cleaned using high-pressure spray systems.
Key Features:
Compact, space-saving design
Suitable for limited floor space
Lower water and energy consumption
Simple structure and easy maintenance
Best For:
Small to medium-sized operations
Facilities with limited installation space
Businesses with moderate cleaning requirements

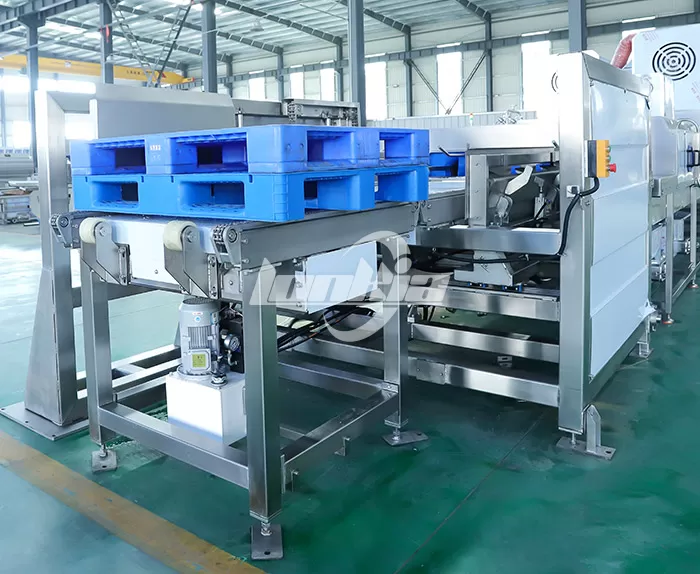

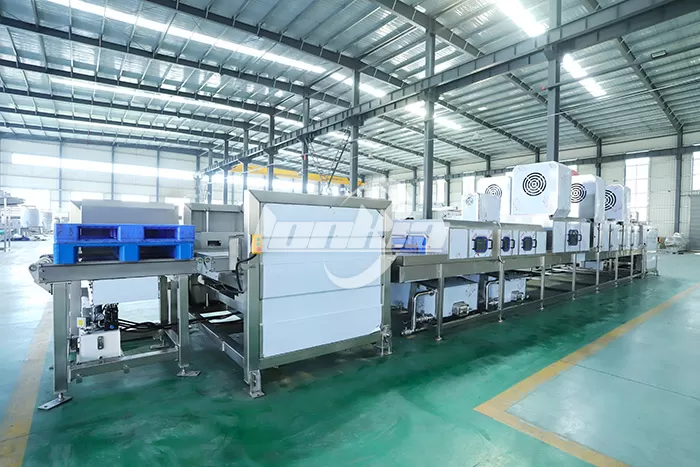

What Is a Horizontal Pallet Washing Machine?
A horizontal pallet washing machine uses a conveyor system to transport pallets through multiple cleaning stages while lying flat.
Key Features:
Continuous automatic operation
High throughput and efficiency
Multi-stage cleaning (washing, rinsing, drying)
Suitable for integration into production lines
Best For:
Large-scale industrial operations
High-volume pallet cleaning needs
Automated production environments
Vertical vs Horizontal Pallet Washing Machine: Key Differences
| Feature | Vertical Type | Horizontal Type |
|---|---|---|
| Installation Space | Compact, space-saving | Requires larger floor space |
| Capacity | Medium | High |
| Automation Level | Semi-automatic or manual | Fully automatic |
| Cleaning Efficiency | Good | Excellent (multi-stage cleaning) |
| Water Consumption | Lower | Higher |
| Cost | Lower initial investment | Higher upfront cost |
| Maintenance | Simple | More complex |
How to Choose the Right Pallet Washing Machine
Choosing between vertical and horizontal systems depends on several key factors:
1. Production Volume
If your facility handles a large number of pallets daily, a horizontal system is more efficient. For lower volumes, a vertical machine is sufficient.
2. Available Space
Limited factory space? A vertical pallet washer is the better choice due to its compact footprint.
3. Automation Needs
If you want to integrate cleaning into a fully automated production line, a horizontal system is ideal.
4. Budget Considerations
Vertical machines: Lower upfront cost, economical for small businesses
Horizontal machines: Higher investment but better long-term efficiency for large operations
5. Cleaning Requirements
For industries with strict hygiene standards (e.g., food or pharmaceuticals), horizontal machines provide more thorough cleaning with multi-stage processes.
Industry Applications
Both types of pallet washing machines are widely used in:
Food & beverage processing
Cold chain logistics
Warehousing and distribution centers
Pharmaceutical manufacturing
Agriculture and meat processing
Final Verdict: Which One Should You Choose?
There is no one-size-fits-all answer.
Choose a vertical pallet washing machine if you need a compact, cost-effective solution for moderate cleaning needs.
Choose a horizontal pallet washing machine if you require high capacity, automation, and superior cleaning performance.
Conclusion
Investing in the right pallet washing machine can improve hygiene standards, reduce labor costs, and boost operational efficiency. By understanding the differences between vertical and horizontal systems, you can make a smarter decision tailored to your production needs.
If you're planning to source pallet washing equipment for your business, it's recommended to work with an experienced manufacturer who can provide customized solutions based on your industry requirements.
