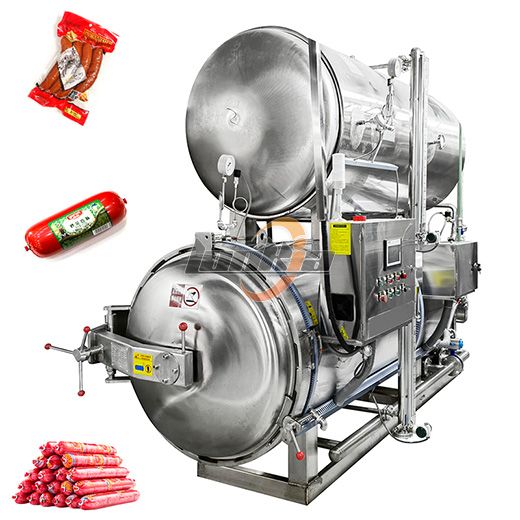

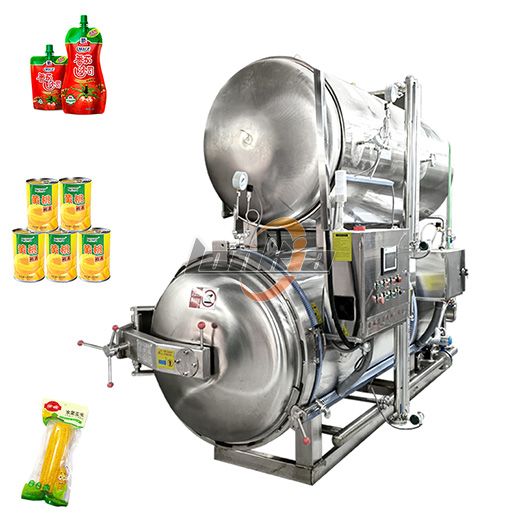

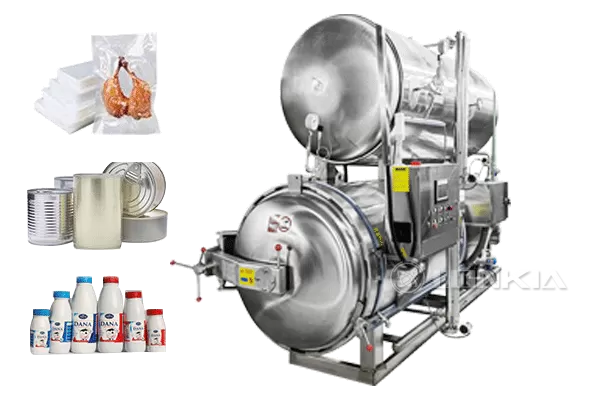

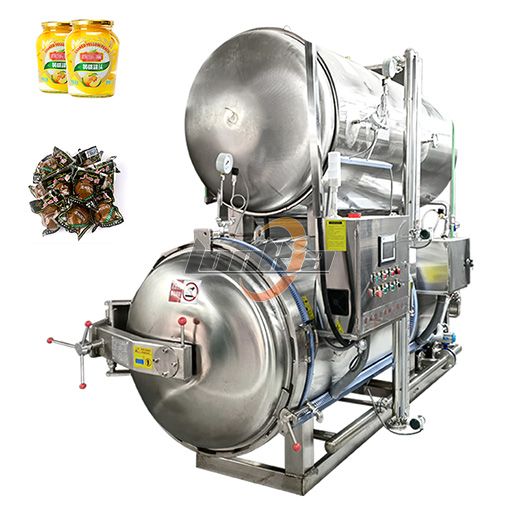

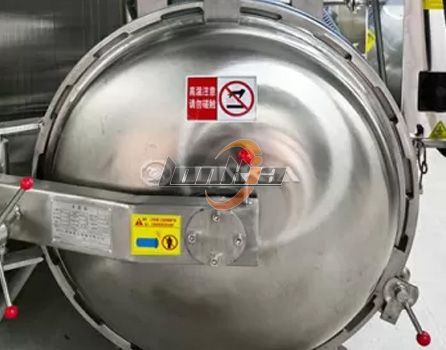

Steam Retort Machine (Food Autoclave)

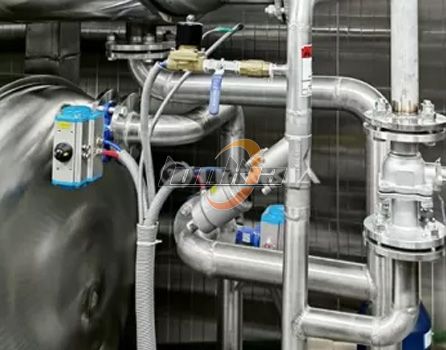

Steam retort machimery adopts steam sterilization process and uses a membrane valve to control the injection of steam from the bottom to exhaust the air in the retort, so that there is no sterilization cold spot in the retort, and the temperature and pressure in the retort are precisely controlled.

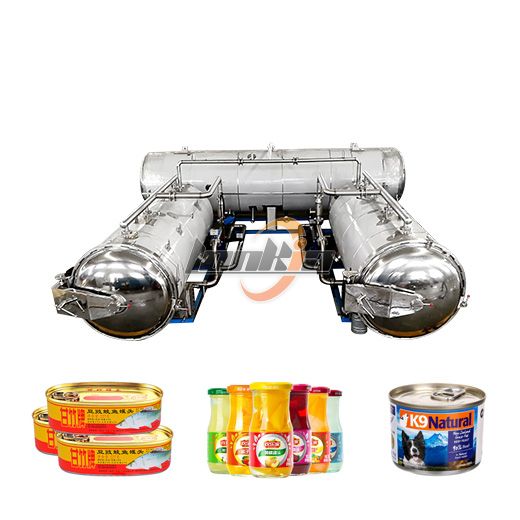

Suitable for tinplate canned products, luncheon meat cans, pet cans, aluminum foil bags, tin cans, aluminum cans, aluminum bottles, plastic bottles, cups, boxes, trays, soft packaging bags, ligature sleeve packaging products sterilization.

  • ODM
  • 7*24-Hour Service
  • Full Range
  • After Sales Service

Advantages

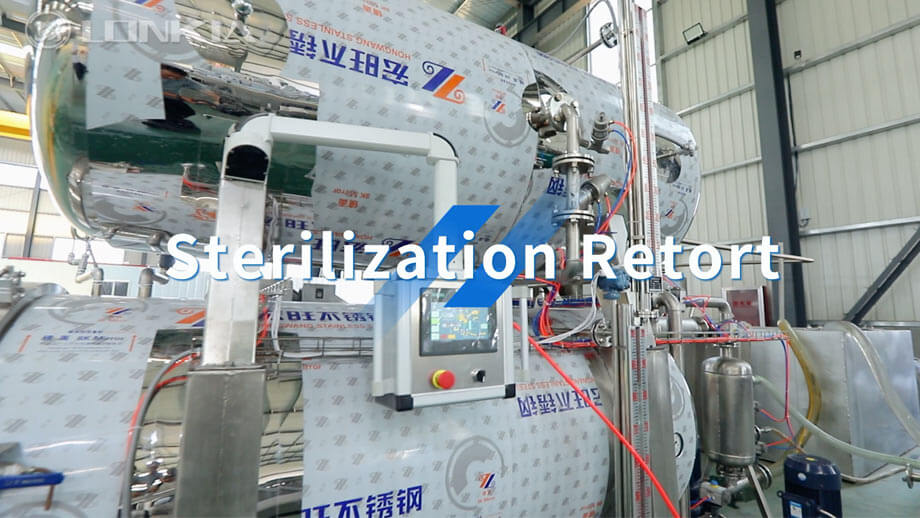

Steam Retort Machine (Food Autoclave) Video


Technical Parameters

ParameterDetails
Product NameSteam Retort Sterilizer ( Food Autoclave)
Model OptionsLKS-500, LKS-1000, LKS-1500, LKS-2000 (Customizable)
Capacity2–5 batches/hour depending on product and model
Chamber SizeCustomizable – Typical range: 900–1400mm diameter × 1200–2200mm length
Sterilization MethodSaturated steam sterilization
ApplicationTin cans, glass jars, aluminum foil bags, vacuum-packed pouches, etc.
Control SystemPLC + Touch Screen, fully automatic temperature, pressure & time control
Temperature Range60–135°C (140–275°F)
MaterialSUS304 or SUS316L Stainless Steel
Heating MethodSteam heating (via boiler or central steam supply)
Cooling MethodCirculating water with auto temperature regulation
Power Supply220V/380V/415V, 50Hz/60Hz (Customizable)
Safety FeaturesEmergency stop, overpressure protection, temperature alarms
Industry ApplicationReady-to-eat meals, sauces, canned fruits, pet food, dairy, beverages


Note: Technical specifications may change without notice due to ongoing technological advancements.

Applications

Please feel free to contact us at any time to request a quotation and obtain more detailed information about our products and services.

Get Quote

FAQ

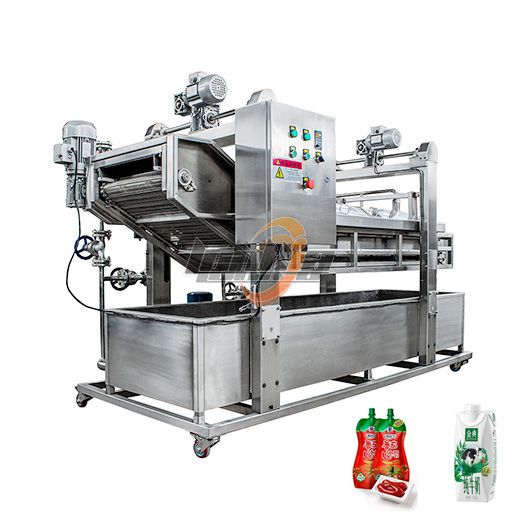

NEXT: Vertical Flexible Packaging Continuous Retort Machine

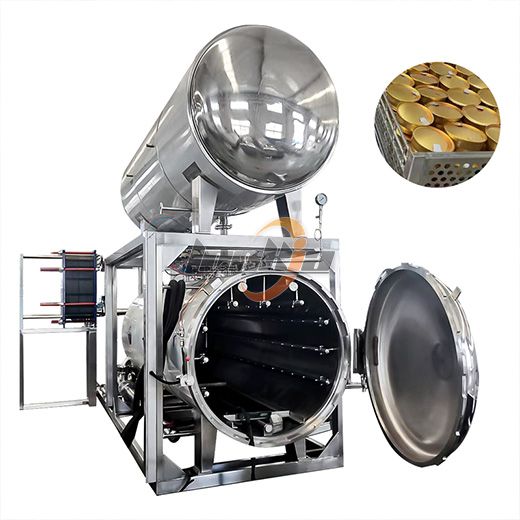

PREV: Water Spray Retort Machine
