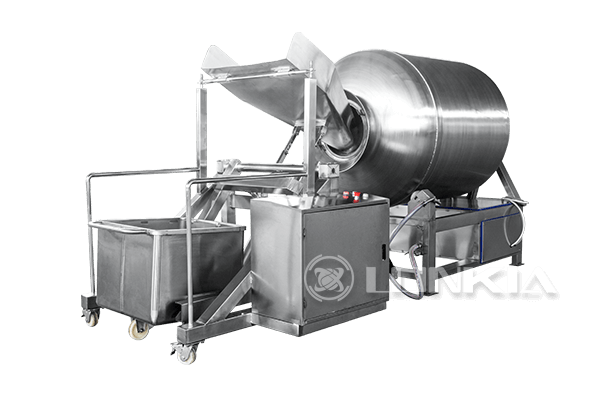

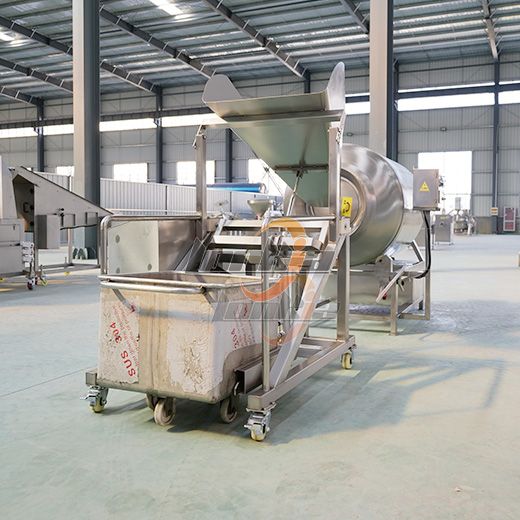

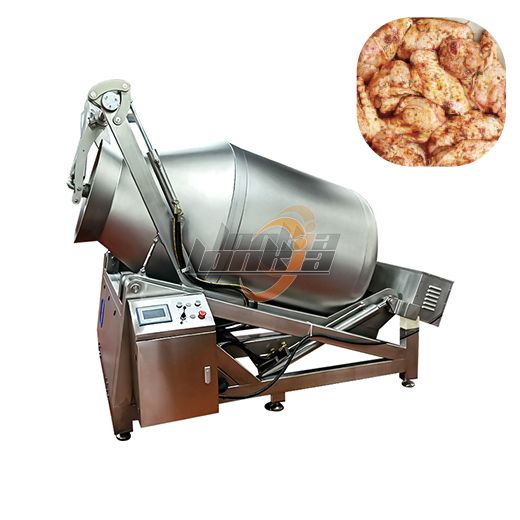

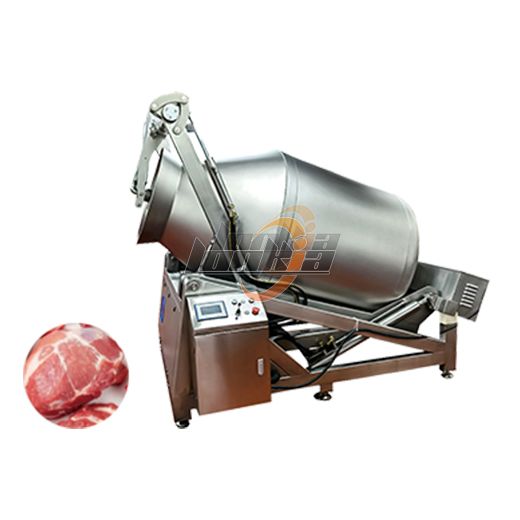

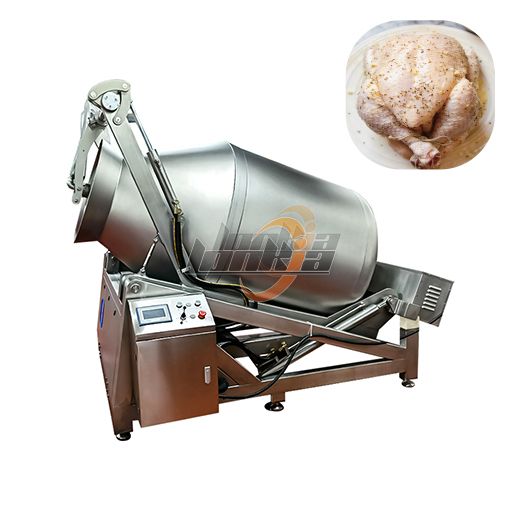

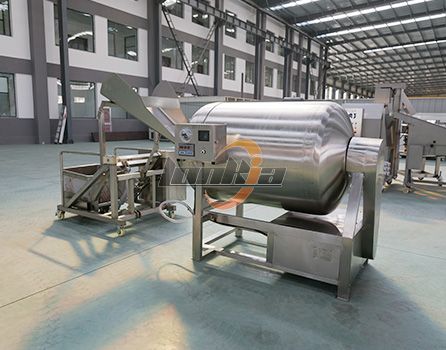

Vacuum Tumbler Marinator Machine

The Vacuum Tumbler Marinator Machine is a piece of equipment used in the food processing industry. It is mainly used to mix, evenly and marinate food. This equipment uses the rolling friction of the drum in a vacuum state to fully mix the food and seasonings, and uses vacuum evacuation to accelerate the marinating effect.

Advantages

Vacuum Pickling
The equipment uses a drum in a vacuum state for pickling, which can make the seasonings penetrate into the food faster and improve the pickling effect.
Multifunctional Operation
The drum speed, vacuum degree and other parameters of the vacuum tumbler can be adjusted according to the requirements of the product to achieve the best pickling effect.
Uniform Mixing
The drum design enables full contact and mixing of food and seasonings to ensure even marinating.
Save Time
The tumbling machine under vacuum can speed up the marinating process, shorten the marinating time, and improve production efficiency.

Parameter	Specification
Product Name	Vacuum Tumbler Marinator
Function	Vacuum marinating / tumbling for improved flavor penetration and tenderization
Tumbler Capacity	100–2000 L (model dependent)
Batch Capacity	~50–1000 kg/batch (depending on volume & product)
Drum Speed	Adjustable (typically ~4–20 r/min)
Vacuum Level	Up to approximately –0.08 ~ –0.09 MPa
Motor Power	2.2–15 kW (model dependent)
Operating Voltage	380V/50Hz standard
Material	Food-grade 304 stainless steel (drum and frame)
Control System	PLC + touchscreen (programmable cycles)
Drum Design	Smooth interior with sealing for vacuum, optionally tilting discharge
Application	Meat, poultry, fish, and various protein marination
Integration	Suitable for prep lines for cooking, smoking, roasting, brine injection

Note: Technical specifications may change without notice due to ongoing technological advancements.

Please feel free to contact us at any time to request a quotation and obtain more detailed information about our products and services.

Get Quote

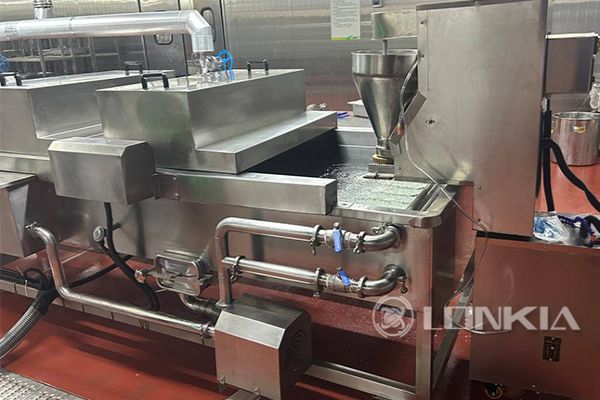

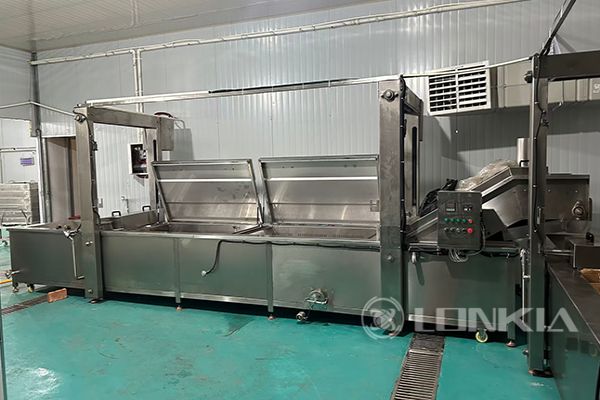

Rabbit Braised Production Line Project in Chengdu, China

Disposal Material	Rabbit Meat
Disposal Capacity	1t/d
Project Time	2023-02

The production line uses an automatic control system to realize the automatic operation of raw material processing, brine cooking, seasoning, packaging and other aspects, which reduces labor intensity and improves production efficiency while ensuring the freshness and tenderness of rabbit meat and u

Learn More

Which meat processing applications is a vacuum tumbler marinator best suited for?
The vacuum tumbler marinator is ideal for marinating meats (beef, poultry, pork), seafood and processed meat items like sausages or bacon. It improves marinade penetration, texture and processing speed.
How does vacuum tumbling improve marination efficiency compared to traditional soaking methods?
By creating a vacuum inside the drum and rotating the meat pieces, the device opens muscle fibers, allows marinade to penetrate deeper and reduces marination time significantly. This results in uniform taste, better yield and faster throughput.
What hygiene, customization and maintenance aspects should be considered for a vacuum tumbler?
Ensure the drum is food-grade stainless steel, has good sealing for vacuum, adjustable speed/vacuum settings for different product types, and easy-clean design. Regular maintenance of vacuum pump, seals and drum internals is essential for consistent performance.
