How Much Labor Cost Can an Automated Carrot Processing Line Save You?

Automating carrot processing—from washing and peeling to cutting and packaging—can slash labor requirements by 60–80% and deliver a payback in 1–2 years. A modern line running hundreds of kilograms per hour can replace a dozen-plus operators with just a few technicians, saving on wages (often $15–20/hr in developed markets) and reducing waste. For example, one commercial automaton retrofit reduced labor costs 70% and paid for itself in ~14 months. This article shows how to quantify those savings and plan your investment.

The Labor Challenge in Carrot Processing

Carrots require intensive manual labor in a typical plant. Common tasks include sorting (removing green tops, broken carrots, stones), washing, peeling, cutting into sticks or dices, and final QC and packaging. In a medium-sized manual line, one might see:

• Washing/Sorting: 2–4 workers (removing debris, contaminants)
• Peeling: 3–6 workers (manual or small-scale machine tenders)
• Cutting/Slicing: 2–4 workers (feeding and monitoring cutters)
• Inspection & Packaging: 2–4 workers (quality check, loading into packs)
• Support/Supervision: 1–2 staff

Totaling 10–20 operators per shift on a mid-level line. With typical wages (U.S. median ~$17.73/hr, or Europe/China maybe $10–15/hr equivalents), even a 50% labor reduction yields major cost savings. For example, 12 workers at $15/hr working 8h/day, 250 days/year, cost ~$432,000 annually. Labor is one of the largest operating expenses in vegetable processing, so automation pays off fast.

What Is an Automated Carrot Processing Line?

An automated carrot line integrates all these steps into a continuous system. Key components include:

·         Grading/Sorting Machines (rollers or optical sorters) that remove tops, undersize/oversize roots and defects. (E.g. TOMRA’s “Halo” sorter claims up to 80% labor reduction in sorting.)

• Washing Units (drum or bubble washers) that clean carrots with water jets and brushes.
• Top-&-Tail Machines (sometimes) that automatically cut off carrot crowns/tails.
• Peeling Machines (steam or abrasive) to remove skins. Steam peelers alone handle 1,000–50,000 kg/hr.

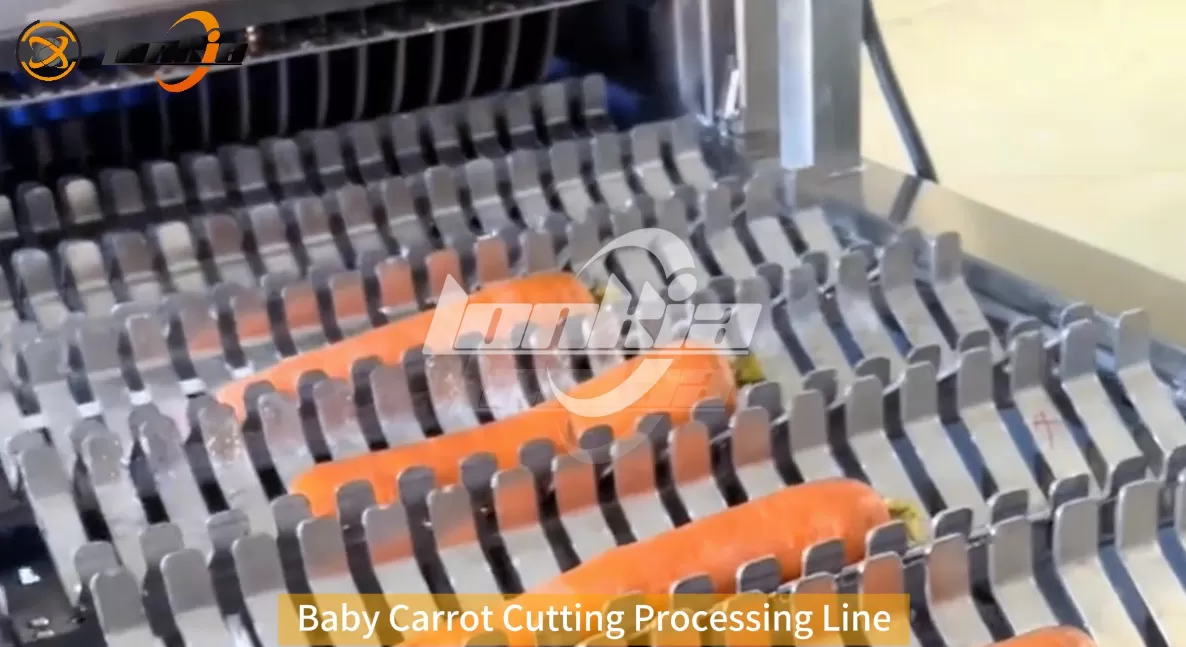

• Cutting Machines (slicers, dicers, stick-cutters) for final format. Many run at hundreds to thousands kg/hr with quick-change blades.
• Packaging Stations (weighers and baggers) for final packing.

All these are controlled by PLCs/SCADA, with conveyors linking each stage. For example, one vendor’s fully automatic line cleans, peels, grades, and cuts carrots at up to 1,000–1,500 kg/hour. Multi-shift throughput can thus reach tens of tonnes per day with minimal downtime.

Crucially, automation replaces manual feed and handle tasks with machine handling. An operator’s role shifts to monitoring, quality-checking, and maintaining equipment, rather than constant physical labor.

Manual Baseline vs Automated Labor Requirements

To quantify savings, let’s outline a typical medium-sized line:

• Manual Line (Baseline): e.g. 1,000 kg/hr capacity, 2 shifts/day (16 h), 250 days/yr.
• Washing/Sorting: 3 operators/shift
• Peeling: 4 operators/shift
• Cutting: 2 operators/shift
• Packaging/QC: 3 operators/shift
• Support: 1 supervisor/shift
• Total: ~13 operators/shift, 26 per day.

At $15/hr and 8 hr/shift: 13×$15×8 = $1,560/day. For 2 shifts: $3,120/day. For 250 days: $780,000/year.

• Automated Line: Same capacity, now equipped with conveyor-fed machines:
• Oversize Sorter & Tail Cutter: 1 tech/shift (monitoring entry feed)
• Washing Unit: 1 operator/shift (adjusting flow, clearing jams)
• Peeling Machine: 1 tech/shift (monitoring, minor clean-up)
• Cutting & Packaging: 1 tech/shift (loading bundles, packaging machine operator)
• Support: 1 supervisor/shift (overseeing line, scheduling)
• Total: ~5 operators/shift, 10 per day.

Labor cost: 5×$15×8= $600/day per shift, $1,200/day for 2 shifts, or $300,000/year.

Savings: ~$480,000 annually (~62% reduction in labor cost) by automation. Similar analyses often find 50–80% labor cutbacks.

For a larger facility (e.g. 3,000 kg/hr capacity, 3 shifts, 300 days/yr), the savings scale up. A conservative estimate might be: - Manual line: ~30 operators/shift → ~$2,160/day/shift ($6,480/day) → ~$1.9M/yr. - Automated: ~10 operators/shift → ~$720/day/shift ($2,160/day) → ~$650k/yr. - Savings: $1.25M/year (~66%).

(The exact numbers depend on line design; see Table 1 for typical scenario comparisons.)

(Food Processing wages ~ $13.88–17.73/hr) provides a baseline for labor cost assumptions. In regions with higher wages (Europe, North America), savings per worker are even higher; in lower-wage regions, automation may be slower to pay back but still beneficial for capacity and consistency.

Labor Savings Scenarios (Examples)

We illustrate two cases – a small line (~0.5 t/hr) and a large line (~3 t/hr):

Table 1: Sample labor and cost comparison, small vs large carrot lines (assumptions in text).

These scenarios illustrate 1000–$2M+ per year in labor savings. Actual results will vary: a published case saw 70% labor savings on a 1 t/h line with a ~$80k line, ROI ~14 months. Another report notes optical sorting can cut manual inspection labor by up to 80%. Smaller lines still see tens of thousands saved annually.

Calculating ROI and Payback

To estimate ROI, compare the automation CapEx to annual cash savings (labor + reduced waste). For example:

• Small line (CapEx ~$80,000): saves ~$153,000/yr (as above). Payback = $80k/$153k ≈ 0.52 years (6 months). Even if our assumptions are optimistic, a 1–2 year payback is realistic.
• Large line (CapEx ~$300,000): saves ~$2,075,000/yr. Payback ≈ 0.15 years (2 months) – in reality, large lines often incur more CapEx (packaging, dewatering, etc.), so even $300k–$500k yields 1–2 year payback through labor savings and increased yield.

Key ROI drivers: - Labor hourly rate: Higher wages mean faster ROI. In low-wage regions the labor saving is less in $, but automation still boosts capacity. - Operational hours: Plants running 2–3 shifts gain more from automation. - Production volume: Automated lines reduce per-unit labor costs as throughput grows. - Yield improvements: Uniform cutting and gentle handling reduce rejects, adding indirect savings. (For example, avoid 1–2% scrap saves thousands annually in large lines.)

Real-world references: - The STvega client saw ROI in 14 months. - A report notes optical sorting yields can improve up to 4%, boosting the effective output without extra raw carrots. - Würma Solutions reports on root veg lines (parsley/carrot) note multi-million-$ annual savings when replacing hand trimming with RotoCut machines.

Manufacturers often provide ROI calculators or case studies. In planning, sum the upfront cost plus auxiliary investments (e.g. new conveyors, control panels) vs the total annual savings (labor + reduced reject spoilage) to find payback.

Operational Considerations

While gains are large, buyers should note:

• Maintenance and Downtime: Automated machinery requires maintenance. Factor spare parts and occasional downtime costs. However, modern lines include CIP cleaning and self-diagnostics to minimize downtime.
• Training and Staffing: Operators need technical training (PLCs, troubleshooting). Initial learning curves may slow productivity until the team adapts.
• Product Variability: Carrot size/shape variation can challenge automated feeders and peelers. Choose systems with adjustable settings (speed, roller pressure). Sensor sorting helps handle variability.
• Changeover Time: Automating cutting/gauging means trade-offs: machines can run 24/7 for one product but require cleaning between batches. Plan for cleaning cycles when scheduling lines.
• Quality Requirements: Automation improves consistency (uniform peeling/cutting), which can open new markets (e.g. baby carrots, IQF products). This can indirectly raise revenue, beyond labor savings.

Actionable Next Steps

1. Audit Current Operations: Map your manual workflow and labor costs. Identify high-labor steps (e.g. washing, peeling, trimming).
2. Define Requirements: For your product mix, determine needed capacities (kg/hr), formats (sticks, coins), and quality specs.
3. Engage Vendors Early: Get quotes from experienced lines integrators (e.g. LONKIA, STvega, Wyma) who can customize a carrot line. Share your specs and challenges.
4. Pilot Testing: If possible, run a trial on a smaller line or with a demo machine to fine-tune parameters (especially if using new peeler technology or optical sorting).
5. Evaluate Total Cost of Ownership: Compare equipment costs vs projected labor (and utility) savings. Include potential yield improvements (less waste).
6. Set KPIs: Track key metrics post-install: labor hours per ton, throughput consistency, downtime hours, yield percentage. These validate the ROI claims in practice.
7. Plan Rollout: Start with the highest-impact line (e.g. largest product volume or most labor-intensive), then replicate gains plant-wide.

Conclusion

Automating your carrot processing line can dramatically cut labor costs and enhance throughput. By replacing hand-sorting, peeling, and cutting with machines, processors routinely see 60–80% fewer operators needed. The capital outlay—tens to hundreds of thousands of dollars—typically pays back within one to two years via saved wages and higher yield.

In short, an automated Carrot Processing Line is not just a convenience; it’s a strategic investment. It frees up labor (the hardest cost to reduce otherwise) and often lowers per-unit cost so rapidly that even modest-sized plants achieve ROI in months. For any processor facing tight margins or worker shortages, automating carrot processing is a proven path to competitive advantage.

FAQ:

• Q1: What parts of carrot processing are easiest to automate? Most labor is saved in washing/sorting, peeling, and slicing. These are straightforward to automate with conveyors and machines. Packing and inspection often remain semi-automated.
• Q2: How do I calculate ROI for my facility? Estimate your current labor cost (operators×wage×hours) and compare to the estimated cost with automation (fewer operators + depreciation). Add any expected yield gains. Then calculate Payback = Investment / (Annual net savings).
• Q3: Will automation work with irregular carrots? Yes, modern equipment is designed for variability. For example, optical sorters can handle different sizes. Specify your carrot type (length/diameter variation) to suppliers so machines can be calibrated appropriately.
